    Product Details:

    Place of Origin: CHINA XIAMEN
    Brand Name: San-Tide
    Model Number: S-106-4

    Payment & Shipping Terms:

    Minimum Order Quantity: Can discuss
    Price: Can discuss
    Packaging Details: PE plastic bag inside date core to you, carton packaging, a case of 18 sets. (according to customer's demand)
    Delivery Time: 15-30 days
    Payment Terms: MoneyGram, T/T, L/C
    Supply Ability: unlimited
    Contact Now
    Detailed Product Description
    Material: PVC Color: White
    Installation Method: Manual Installation Function: Wall To Row
    Specifications: Corrugated Pipe Processing Mode: Assembly Production
    Product Type: Toilet Fittings Flushing Mode: To Drain
    Product Name: Drainage Pipe Whether Cross-border Goods Source: No

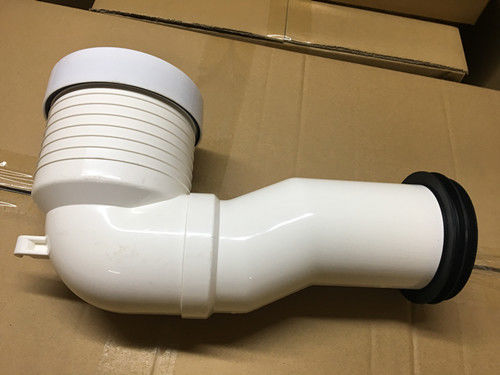

    White quality PVC material drain pipe, 9 grid cutting assembly toilet installation sewage pipe.



    How to install toilet drain pipe?

    Method 1: bolt fixation method, this method is aimed at the bottom of the installation hole design of the toilet seat.Toilet on the location of the installation, use a pencil to draw the need to the position of the mounting holes in the ground at the bottom of the hole location and contour, and then remove the toilet, in marked the location of the hole and insert the explosive bolts, in sit implement discharge outlet joint coating adhesive, with the ground will implement smoothly away, strong explosive bolts, and finally close to the bottom sealing implement with cement mortar.Method two: cement bonding method, this method is aimed at the bottom no hole design of the toilet seat.Toilet on the location of the installation, use the pencil out of the toilet bottom contour, along the contour line to laying a circle within a 30 mm wide, 15 mm high cement sand pulp, present implement discharge outlet with the ground joint coating adhesive, wipe clean implement foot, smoothly in its installation position, make strong the binding, wipe clean overflow of cement mortar.

    Model: S - 106-4

    Name: the wall row to change the row to connect the joint.

    Material: PVC

    Specification: applicable to aperture 102 + 5mm I.D.

    Name: The wall platoon is rearranged to connect the joint.
    Type: S-106-4
    Brand: San-Tide
    Origin: Chian xiamen
    Material: PVC
    Function: Toilet drainage
    Color: white
    Specifications: Bellows can be cut and adjusted.
    Cross-border sources: no
    Scope of application: toilet
    Suitable for: The aperture 102±5mm
    Spare parts: Screw, nut, iron plate.
    Processing: Assembly production
    Foreign trade: is

    Manual Installation Toilet Drain Pipe Anti - Chemical Media With 9 Grid Cutting Assembly

    Manual Installation Toilet Drain Pipe Anti - Chemical Media With 9 Grid Cutting AssemblyManual Installation Toilet Drain Pipe Anti - Chemical Media With 9 Grid Cutting Assembly
    Manual Installation Toilet Drain Pipe Anti - Chemical Media With 9 Grid Cutting AssemblyManual Installation Toilet Drain Pipe Anti - Chemical Media With 9 Grid Cutting Assembly

    Many people feel that the toilet is very simple, as long as the buckle on the flange, button on the outlet of a just a matter of, but installation is easy to a problem, can say in the toilet under the condition of no problem, the smelly toilet is not good, to see exactly how to pack.

    1, reserve a good outlet pipe has a certain height, the general need to cut part of the left line 1 cm or so, is too high if the toilet can not fall to the ground, too low will leave gaps can't seal.

    2. Look at the bottom of the toilet, two large holes and two small holes. Two small ones are made of burning holes, so they must be plugged up. Otherwise, they will leak the odor.
    The big one is not necessarily all of the toilet, it is made in order to adapt to different hole spacing, good toilet generally only a drainage hole, if you buy is this kind of type to paraphrase, must also want to use glass glue is stuck together.
    The one with the black washer is the real sewage outlet, which needs to be marked out with the ten-word line method, which is also the target on the ground, so that it can be aligned.

    3. First round the drain mouth, and the rim of the toilet bowl with glass glue.
    4. Put the marked mark on the toilet before installing it and keep it fixed.
    5. Water tank test.
    6. Put another round of glass glue, and when the glue dries, remove the extra shovel. The toilet is installed!
