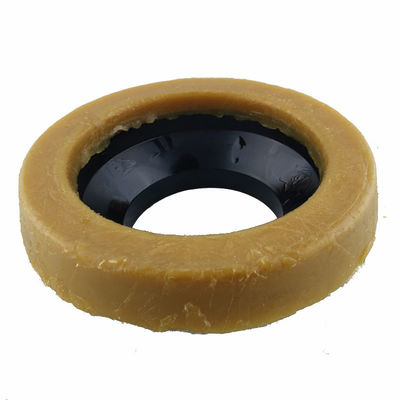

300G Toilet Flange And Wax Ring Discharge Sealing Ring For Urinator Anti - Odor

The toilet discharge sealing ring flange ring of the rubber wax oil seat urinator anti-odor seal

High temperature can reach 70 degrees Celsius.Applicable to export.

Good waterproof sealing property, high temperature resistance, corrosion resistance, aging resistance, dry method, easy installation and disassembly.

Provide permanent leakproof sealing effect to prevent bugs, odor, gas and acidic substances from entering.

Apply to 3 'or 4' in the toilet.

The sealing function is suitable for the toilet or wall to install the water urinal.

Product name: toilet seal flange

Item no. : S-201

Product size: applicable to 3 - inch and 4 - inch drainage pipe diameter installation

Merchandise brand: San-Tide

Material composition: WAX

Test method:

High temperature performance test

1. Take the new sample of the wax ring and put it into the high-temperature test box, then adjust the temperature to 82 degrees (Celsius), and the temperature must be kept constant.

2. Test time: 5 minutes;

3. Then compare the sample database of the test sample before test.

Storage performance test

1. Take the new sample 3PCS of wax ring and put it into the high temperature test box, then adjust the temperature to 51.7.

2. The wax ring is placed in three ways according to the positive release and inverted.

3. Test time: 24 hours;

5. Then compare the test sample data with the sample data before the test.

Low temperature performance test

1. Take the new sample of the wax ring and put it into the low-temperature test box, and then adjust the temperature to -10 degrees (Celsius), and the temperature must be kept constant.

2. Test time: 12 hours;

3. Then compare the test sample data with the sample database before the test.

Acid test

1. In the normal temperature condition, the wax ring sample was deposited into a solution of 10% hydrochloric acid solution;

2. Test time: 12 hours.

3. Then compare the data of the test sample with the sample data before the test.

Basic test

1. In the normal temperature condition, the wax ring sample was deposited into a sodium hydroxide solution containing 10%.

2. Test time: 12 hours.

3. Then compare the data of the test sample with the sample data before the test.

Leak test

1. The wax ring is adhered to the solid and clean glaze brick, and the blowpipe with a diameter of 110mm and a length of 250mm is fixed in the middle of the wax ring, and the water level is 200mm in the discharge pipe.

2. Test time: 1 week;

3. Observe whether there is water leakage every day.

Adhesion test

1. Apply 5KGF pressure to the glazed tiles of clean and dry and hold for 1 minute, then invert the wax ring.

2. Test time: 48 hours;

3. Observe whether it falls off.

Atmospheric photooxygen aging test.

1. Place the wax ring sample 2PCS on the open platform;(where sunlight can shine for a long time)

2. Test time: 10 days.
