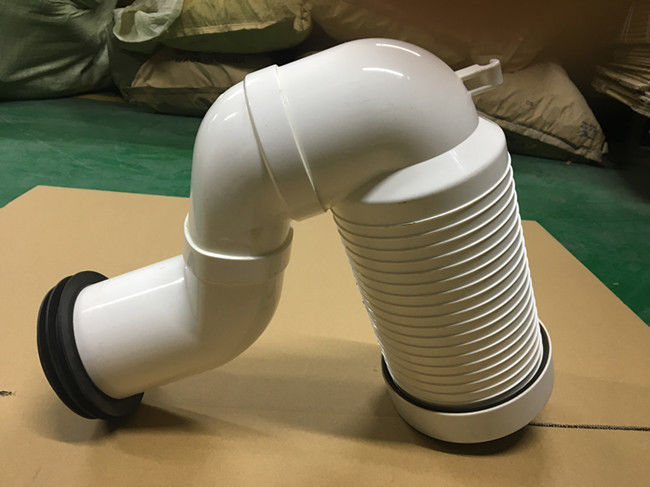

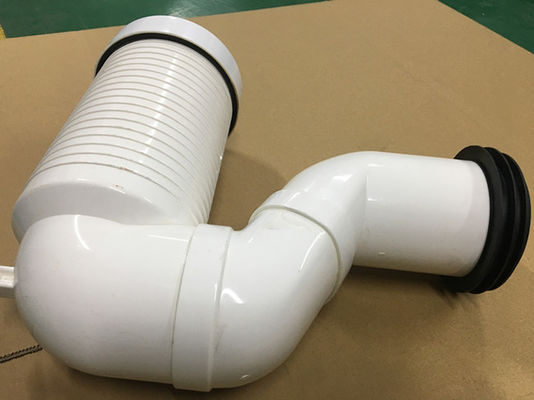

Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool

Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool

  • Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool
  • Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool
  • Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool
  • Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool
  • Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool
Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool
Product Details:
Place of Origin: CHINA XIAMEN
Brand Name: San-Tide
Model Number: S-107
Payment & Shipping Terms:
Minimum Order Quantity: Can discuss
Price: Can discuss
Packaging Details: PE plastic bag inside packing, carton outer packing, each case pack 12 sets.(can be packed according to customer's requirements)
Delivery Time: 15-30 days
Payment Terms: MoneyGram, T/T, L/C
Supply Ability: unlimited
Contact Now
Detailed Product Description
Features: High Quality Material Usage: Wall Row
Product Type: Toilet Fittings Category: Sanitary Ware
Material: PVC Color: White
Specifications: 4 Inches Cross-border Sources: No
Form: Packaging Production Function: Domestic Sewage
High Light:

toilet sewage pipe

,

wc waste pipe

The wall is arranged in a row to drain the toilet drain tube of the Australian PVC pipe toilet shifter.





The toilet blowdown pipe is under the ground, how should handle?



1. Determine the installation location and drill holes in the ground.After aligning the floor drain with the drain at the bottom of the toilet bowl, draw the position of the toilet seat at the bottom of the toilet seat according to the external dimensions of the toilet seat, and drill holes through the percussion drill.The hole depth is about 5 cm.



2. Install the toilet seat.Insert the steel expansion bolt into the ground hole, insert the bottom corner of the toilet into the expansion bolt and tighten the nut to position the toilet.The toilet drain outlet is connected with the preset sewage pipe and sealed.



3. Install the tank (even the toilet without this step) according to the installation height and water tank on back wall perforation position, the corresponding fixed position on the metope of drilling and tapping into the steel bolts, then put the water tank in place, make the back wall set into the expansion bolt, add 3 mm thick nylon washer on the nut and tighten.



4. Install the connection pipe between the tank and the toilet seat (with copper pipe or plastic pipe, etc.), and the connection pipe between the inlet pipe and the water tank (with stainless steel bellows, etc.).Inlet connection should be equipped with Angle valve (inlet valve).



5. Install floating ball and other accessories in the tank.



6. After opening the water inlet valve, adjust the height according to the required height in the tank and adjust the tightening degree of the control screw according to the water spraying valve.



7. After the tank is filled with water, check the toilet drain capacity, and whether there is leakage in the connection of each pipe.



8. Seal the gap between the toilet seat and the floor with putty or silica gel.Cement mortar or cement mortar shall not be used as sealing material.



Install toilet seat and toilet seat cover.



Name: PVC blow-down pipe
Type: S-107
Brand: San-Tide
Origin: Chian xiamen
Material: PVC
Drainage pattern: To drain
Usage: Wall row
Product type: Toilet fittings
Color: white
Function: Domestic sewage
Form: Packaging production
Specifications: 4 inches
Installation method: Manual installation
Foreign trade: is

Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool 0Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool 1Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool 2Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool 3Sanitary Ware 4 Inch Toilet Waste Pipe , PVC Pipe Toilet Shifter Connection Tool 4

Worry about the seal of toilet drain tube does not good can leak, countertaste, how can do to avoid these problems?

The weekly: when install the toilet, to aim the toilet drainage tube into the water outlet, with good sealing ring, pay attention to the position of the seal ring can't skew, then hit a circle around the sealant.It is important to note that the sealant must be of good quality, otherwise it is easy to leak and return.

Toilet drain pipe installation -- discharge mode.

The back row is also called the wall row or the horizontal row, according to the literal meaning can be known its discharge direction.In the back seat of the toilet, you should consider the height of the outlet center from the ground, which is generally 180mm.The bottom row is also called ground or vertical, as the name implies, refers to the toilet on the ground.In the lower flush type of toilet, you should pay attention to the distance from the center of the discharge outlet to the wall. The distance between the discharge outlet and the wall is divided into 400mm,305mm and 200mm.
